AUTOMATIC VOLTAGE STABILIZER

Servokon specializes in manufacturing and supplying high quality automatic voltage stabilizers to meet the requirement of different industries as well as residential units. This stabilizer has a transformer and a power control circuit for controlling output AC voltage. The control circuit controls the voltage or power automatically and regulates it to a level that is set or required. The best part is that in the entire operation, the voltage regulator doesn’t require any manual interruption, it functions automatically. Once it is set, you need not to check the voltage every time the main voltage fluctuates. These power regulators are generally used with the home equipments like refrigerator & air conditioner. As automatic voltage stabilizers are loaded with plethora of features, they are highly demanded in residential applications for protecting Refrigerator, Deep freezer, Bottle and water coolers, BOD incubators, Air conditioning appliances from voltage fluctuation. We are a quality concerned company that doesn’t compromise with the quality during the manufacturing process and even the final dispatch is done under the supervision of technical experts.

Technical Specification of Servokon Automatic Voltage Stabilizer
INPUT VOLTAGE RANGE (can be customized) 160-260V / 140-280V/ 90-270 V
OUTPUT VOLTAGE RANGE 220 +-9%
CAPACITY MAX LOAD(Amps) APPLICATIONS
0.24 KVA 1.0 Amps TVs, VCRs, Music System
0.5 KVA 2.0 Amps Refrigerators upto 300 Litres, Water Coolers, Deep Freezers with 1/8 HP Compressor
1.0 KVA 4.0 Amps Water Coolers, Bottle Coolers, Deep Freezers incorporating upto 5/8 HP Compressor, Refrigerators above 300 Ltrs Capacity, BOD incubators, other refrigeration & airconditioning appliances incorporating upto 5/8 HP Compressor.
3.0 KVA 12.0 Amps Water Coolers, Refrigeration and air conditioning appliances incorporating upto 1.5 HP Compressor
4.0 KVA 16.0 Amps Refrigeration and Air conditioning appliances incorporating upto 2.5 HP compressor
5.0 KVA 20.0 Amps Domestic Purpose (Main Line), Air conditioning appliances incorporating 3-5 HP Compressor
7.5 KVA 30.0 Amps For Domestic Purpose Main Line (1 A.c & lighting load)
10.0 KVA 40.0 Amp

Features of Servokon Automatic Power Regulators
  • Servokon Voltage Stabilizers are easy to install and operate
  • Low maintenance required
  • Digital IC controlled circuit, which make the stabilizers automatic in nature
  • Protects the equipment or electronic appliances against voltage fluctuation
  • Time delay relay modes
  • Ensures the equipment or electric device’s safety
  • Seek, compact and elegant design
  • Consumes very low power
Application of an Automatic stabilizer
  • Refrigerator
  • Deep freezer
  • Bottle and water coolers
  • BOD incubators
  • Air conditioning appliances

CMS Series

First time in India, Servokon introduces a revolutionary "Next Generation of Mainline Voltage Stabilizer". It provides constant

View Details

Shakti Series

Once again, Servokon has designed India's first voltage stabilizer specifically keeping in mind India's most

View Details

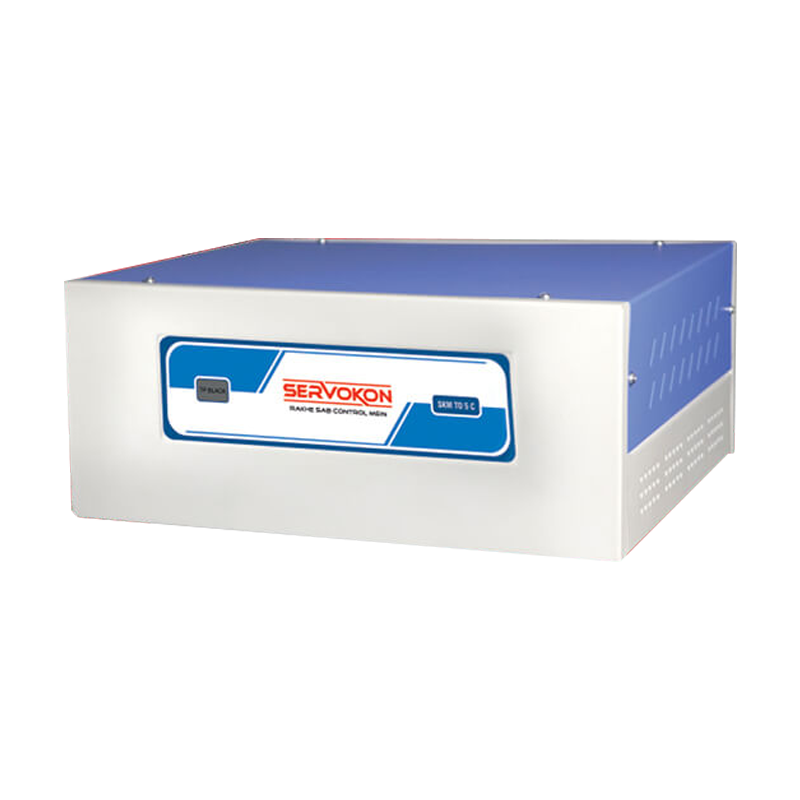

Two in One Series

Servokor's Two in One Stabilizer series is one-of-a-kind product in the market. Our Two in One series will

View Details

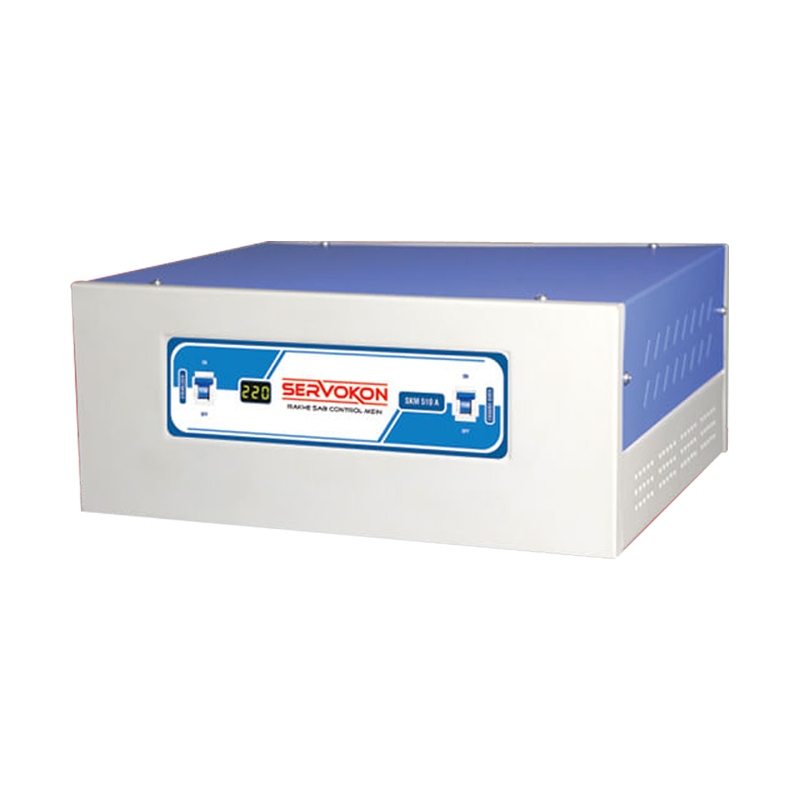

Mainline Series

Servolcon's Mainline Stabilizer series offers a variety of options in this segment also.

View Details

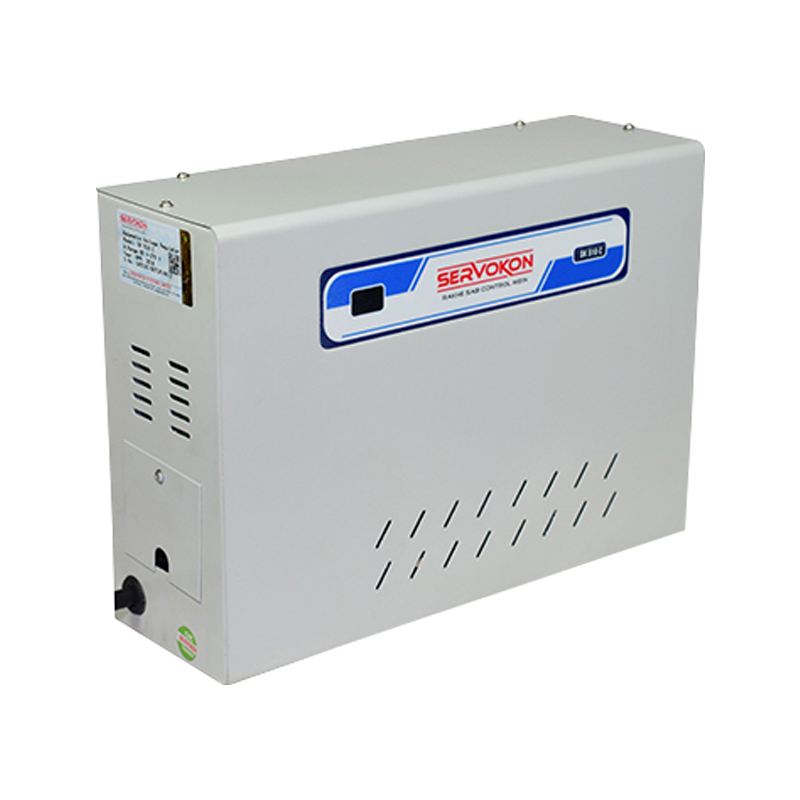

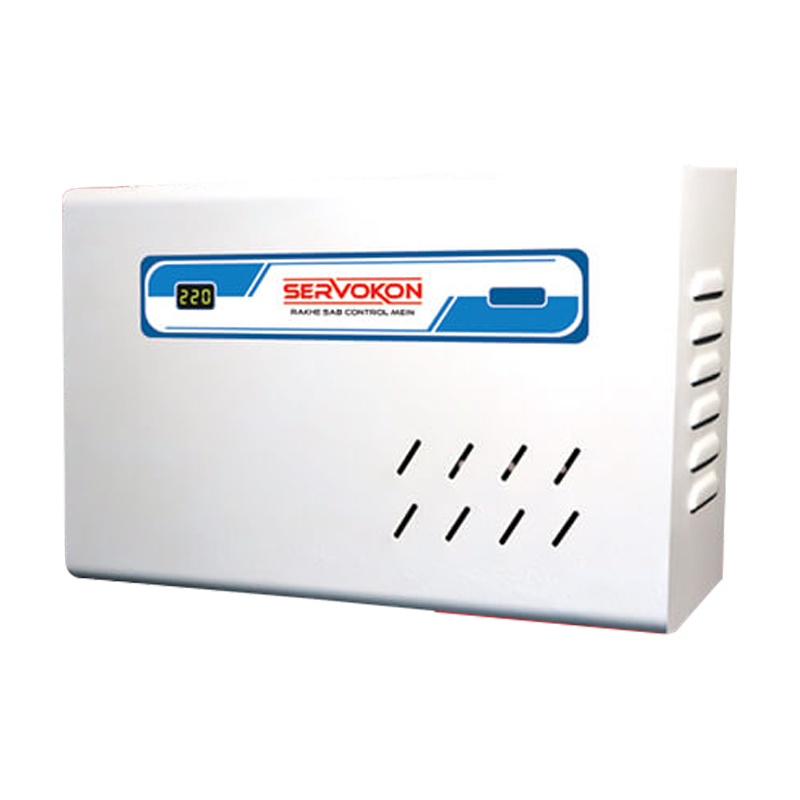

Air Conditioner Series

Voltage Power Supply is unpredictable in most parts of India. Sudden voltage fluctuations

View Details

LED TV Series

Frequent voltage fluctuations can have a negative effect on the sensitive components of your LED

View Details

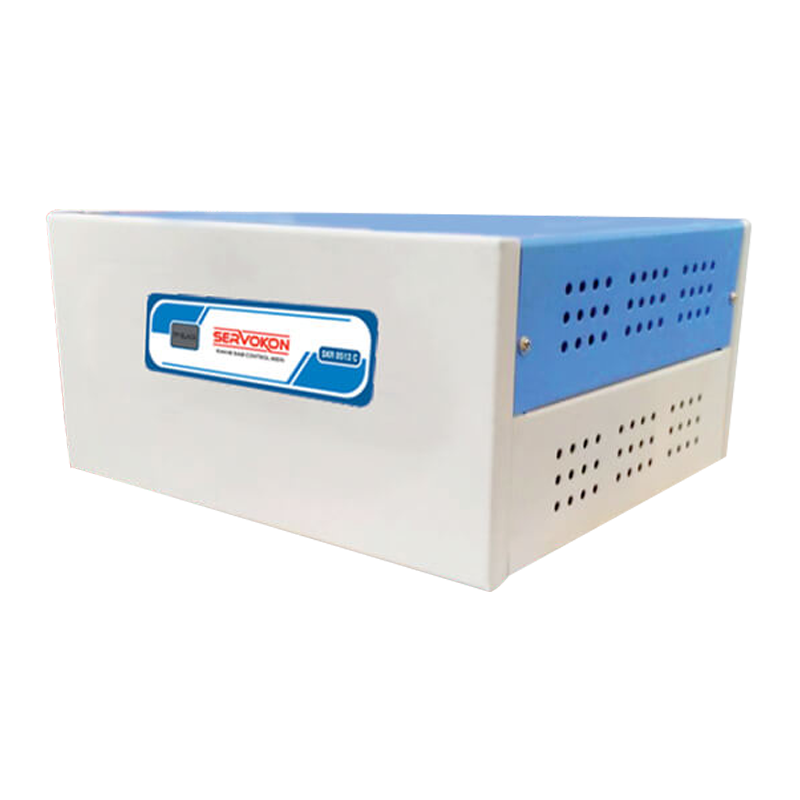

Refrigerator Series
