ONLINE TRANSFORMERLESS UPS
6 KVA ~ 10 KVA ( 1:1 PHASE 1.0 PF )

Download our complete brochure

We are a world class manufacturer and exporter of Power Conditioning Solutions providing the best quality products and services to our customers.

Download
Features
Unity Power Factor “KVA = KW”
High frequency on-line double conversion technology
DSP (Digital signal processors) control technology
Active power factor correction (APFC), Ensure input power factor up to 0.99
High Efficiency 95% (Up to 98% in ECO mode)
Advanced Digital Parallel Technology
Wide input voltage range (110 V ~ 290 Vac) and frequency range (40 ~ 70 Hz)
Auto sensing frequency 50/60 Hz
Dual-input design supporting independent bypass
Flexible battery configuration (settable 16-20 Nos batteries)
High charging current available (Max. 12 A)
Charging voltage and current configured by demands
Equipped with self-aging function
Fan speed varies intelligently with temperature, reducing noise and extending its service life
Equipped with self-aging function Multi Function LCD + LED + Key operation Friendly Human Machine Interface
Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check
Built-in Isolation Transformer (Optional)
Cold start

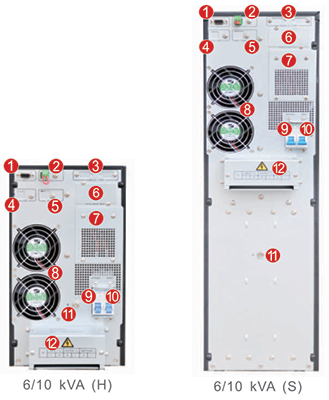

Rear Panel
RS232
EPO
Parallel Port (optional)
USB (optional)
Temperature Detection (optional)
Intelligent Slot
Breaker or outlets ect.
Fans
Bypass Breaker
Input Breaker
GND
Terminals and Cover
ZENITH SERIES

6 Kva ~ 10 kva ( 1:1 phase 1.0 pf )

SPECIFICATIONS
MODEL ZENITH-1106T20 ZENITH-1110T20
Capacity 6 kVA / 6 kW 10 kVA / 10 kW
INPUT
Rated Voltage 208 / 220 / 230 / 240 Vac
Voltage Range 110 ~ 176 Vac (Load Dependent and 100% load ); 176 ~ 290 V
Frequency 40 ~ 70 Hz (auto-sensing)
Power Factor ≥ 0.99
Bypass Voltage Range - 40% ~ +15% (settable)
OUTPUT
Voltage 208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation ±1%
Frequency 50 / 60 Hz ± 2.5 Hz (battery mode)
Waveform Pure Sinusoidal Waveform
Power factor 0.9
Total harmonic distortion (THDv) ≤ 1% (linear load), ≤ 4 % (non-linear load)
Crest factor 3:1
Overload ≤ 110% for 10 Mins, 125% for 1 min, 125% ~ 150% for 30 sec
BATTERIES
DC voltage 192 Vdc (192 ~ 240 Vdc settable)
Inbuilt battery 16 Nos (16 ~ 20 settable)
Charging current (standard) 5A (default), 12A (optional)
Recharge time Standard model: 90% capacity restored in 8 hours: Long Time Model: depend on the capacity of battery
SYSTEM
Efficiency ≤ 94% at 100% load, max. 95% at 60% load, 98% in ECO mode
Transfer time Mains mode to battery mode: 0 ms
Inverter mode to bypass mode: 4 ms (typical)
Protections Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communications RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display LCD + LED
Standards EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1, IEC 62040-3
OTHERS
Operating temperature 00C ~ 450C
Storage temperature -250C ~ 550C (without batteries)
Relative Humidity 0 ~ 95% (non-condensing)
Altitude ≤ 1500 m, derating 1% for each additional 100 m
IP rating IP 20
Noise level at 1m ≤ 55 dB ≤ 58 dB
Dimensions (WxDxH) (mm) 191 x 465 x 350 191 x 495 x 350
Net weight (kg) 14.5 kg 16.5 kg
Gross weight (kg) 16 kg 18 kg
